Description

Communication made to be easy

High Fidelity two-way talk, hear and speak to visitors wherever you are

Voice Assistants

Can integratee with Google Assistant and Amazon Alexa enabled devices

Install and Recharge Easily

The camera runs up to 120 days (Low traffic environment) on one full charge with built in high capacicy batteries and can go anywhere around your home without complex wirring.

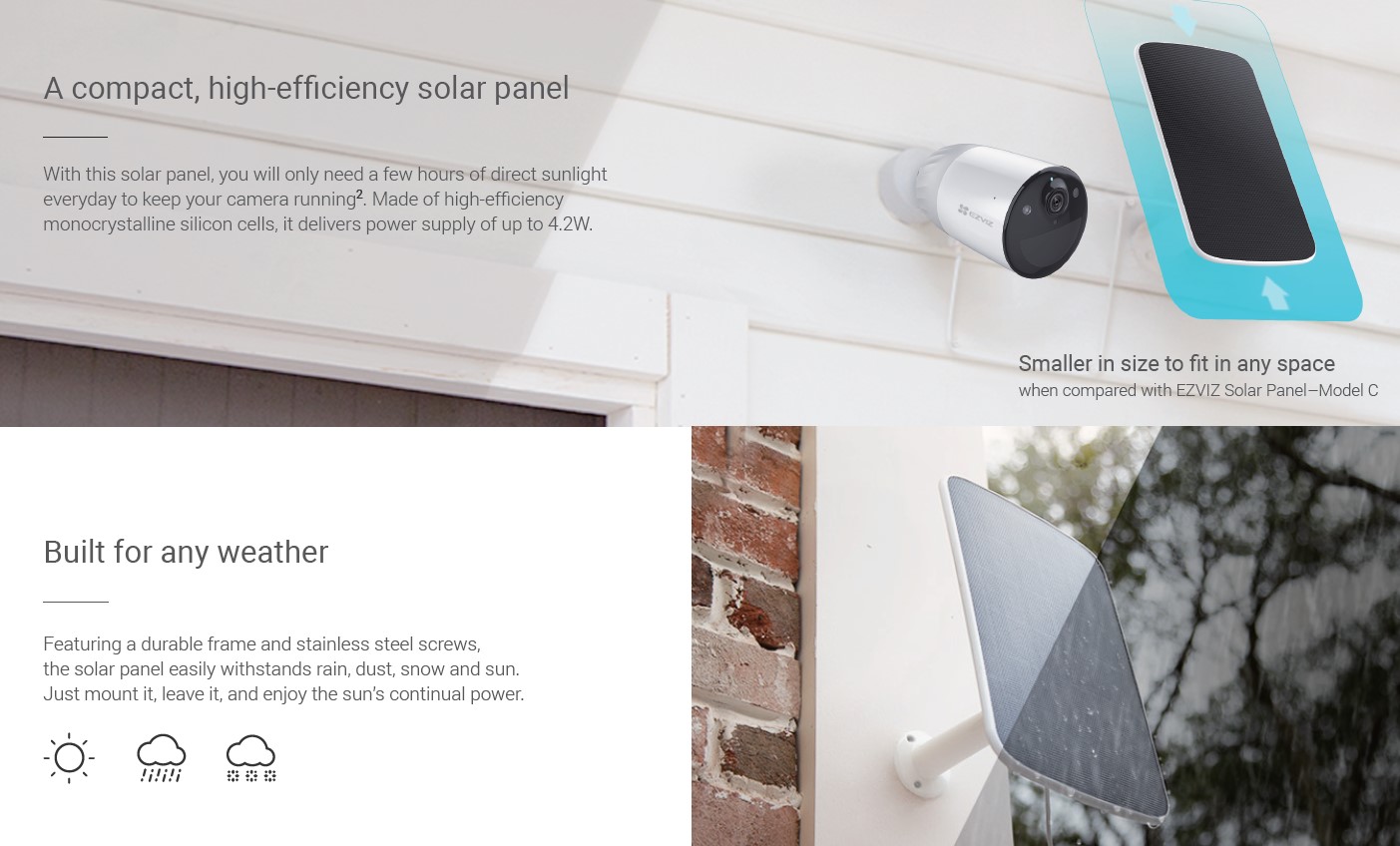

Stay Solar Powered

The camera workd with the included solar panel for non-stop green energy. the solar panel delivers power supply of up to 4.2W and can find the best sunny spot thanks to its adjustable bracket and 4 meter long cable.

A Compact Panel

Easy, Flexibale installation

the panel offers incredible flexibility to mount and secure where you need your camera the most.

Solar Charging Panel-D

Cleaner energy for non-stop protection

Specifications

Specifications
Model	CS-CMT-Solar Panel-D
Performance Parameter
Open Circuit Voltage	7.2V±5%
Short Circuit Current	740mA±5%
Power Voltage	6.0V±5%
Max. Power Current	700mA±5%
Max. Power	4.2W
Solar Cell Efficiency	0.216
Operation Temperature	-20℃~60℃ (-4℉~140℉),Humidity 90% or less (non-condensing)
IP Grade	IP65
Mechanical Data
Solar Cell Type	Monocrystalline solar cells
Product Dimensions	222.6 × 155.9 × 14.9 mm (8.76 × 6.14 × 0.59 inch)
Packaging Dimensions	230 × 161 × 78 mm (9.06 × 6.34 × 3.07 inch)
Weight	With package: 611 g (21.5 oz)
	Panel body without bracket: 334 g (11.78 oz)
In the box
In the box	– EZVIZ Solar Panel-D
	– Adjustable Mounting Bracket
	– Screw Kit
	– Drill Template
	– Quick Start Guide
Certifications
Certifications	RoHS WEEE REACH

CB3

Standalone Smart Home Battery Camera

Specifications

Specifications
Model	CS-CB3 (1080P)
Camera
Image Sensor	1/2.9” 2-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination	0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter Speed	Self-adaptive shutter
Lens	2.8mm @ F2.0 Viewing angle: 128° (Diagonal), 108°(Horizontal), 56°(Vertical)
Day & Night	IR-Cut filter with auto-switching
DNR	3D DNR
Night Vision	IR Distance:15m, Color Night Vision Distance:15m
Video & Audio
Max. Resolution	1080p / 2MP, 1920 x 1080
Frame Rate	Max. 15fps; Self-Adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Full HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate	Self-Adaptive
Max. Bitrate	1 Mbps
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement	2 Mbps
Function
Smart Alarm	Smart Human Motion Detection
Two-way Talk	Supports
General Function	Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage	Supports microSD Card (Up to 256 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (subscription required)
General
Operating Conditions	-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)
IP Grade	Weatherproof Design
Power Supply	DC 5V / 2A (Purchased Separately)
Battery Capacity	5200 mAh
Power Consumption	Max. 10W
Product Dimensions	105.9 × 62.8 × 62.8 mm (4.17 × 2.47 × 2.47 inch)
Packaging Dimensions	103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
Weight	480g (16.93 oz)
In the box
In the box	– CB3 Camera
	– Screw Base
	– USB Cable
	– Mounting Plate
	– Drill Template
	– Screw Kit
	– Regulatory Information
	– Quick Start Guide
Certifications
Certifications	CE / FCC / UKCA / WEEE / RoSH / REACH
